HOG 4 Console

The Hog 4 is the flagship in the range of consoles from High End Systems.  Users familiar with the Wholehog III will be able to walk up to the Hog 4 and start programming without having to learn a whole new interface. The new encoders, jog shuttle wheel, lcd keys, motorized faders and integrated keyboard all serve to enhance this experience, making the Hog 4 completely customizable.

Retaining the sleek look of generations past, the Hog 4 offers the user an advanced programming experience in an established environment. The Hog 4 console, at the top of the Hog line, is designed to handle the largest shows.

The console provides three monitor outputs, MIDI input, output & thru ports, 8 USB ports, 2 Fast Ethernet ports on a rugged Neutrik Ethercon connector allowing you total flexibility. You’re prepared for everything from the smallest industrial job requiring a single console to the largest stadium show, theme park installation or Broadway spectacular requiring a multi console setup with full network backups!

Preserve show data on a solid state hard disk drive as well as with USB drives and CD/DVD-ROM’s, or alternatively connect directly to a network drive to store your show files remotely.


  • Two internal 17-inch wide screen touchscreens with 10 point multi-touch
  • Three external monitors or touchscreens supported
  • Five encoders for an expanded wheelset
  • Twelve LCD User Keys
  • Backlit trackball, with rotary encoder and four configurable buttons
  • Ten motorized playback faders
  • Motorized Grand Master
  • Dedicated Intensity and Rate wheels
  • User assignable Jog Shuttle encoder
  • 48 Soft-Keys for quick toolbar selections
  • Built in DMX Processor 8000 supporting 8 universes of DMX, or 16 universes of ArtNet or sACN
  • Integrated keyboard
  • Eight USB ports
  • Built in MIDI Input, Output & Thru as well as LTC Input


  • With the Screen down - 1028.7mm wide by 723.7mm deep by 164.75mm high
  • With the Screen up - 1028.7mm wide by 723.7mm deep by 417.39mm high
  • Weight - 34 kg
Hog 4 Hire.png

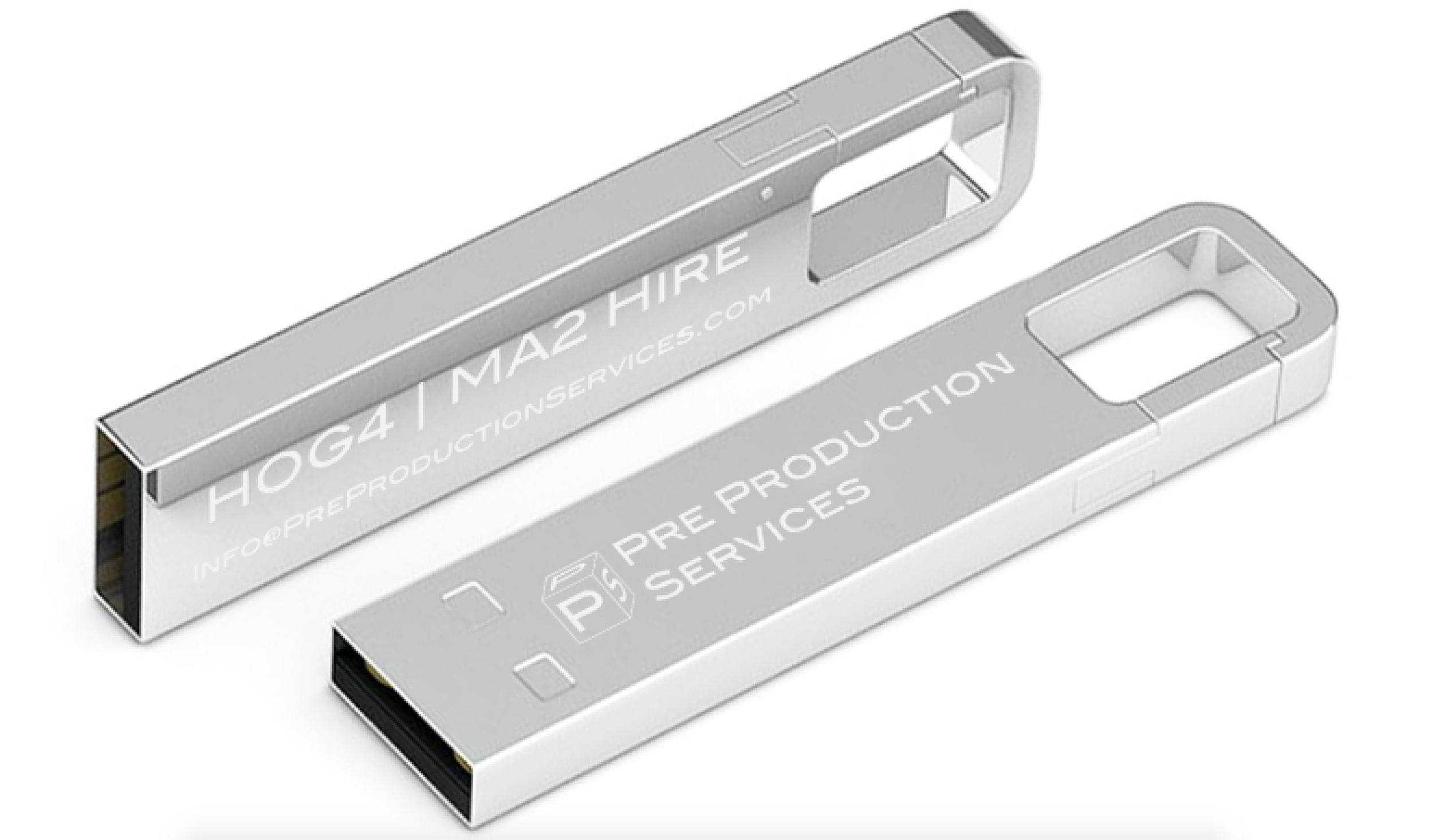

PPS USB Stick Image.png

All Pre Production Services consoles include a complimentary 4GB USB stick, pre configured with the latest software as a Full System Restore drive for either Hog 4 Family or MA consoles
